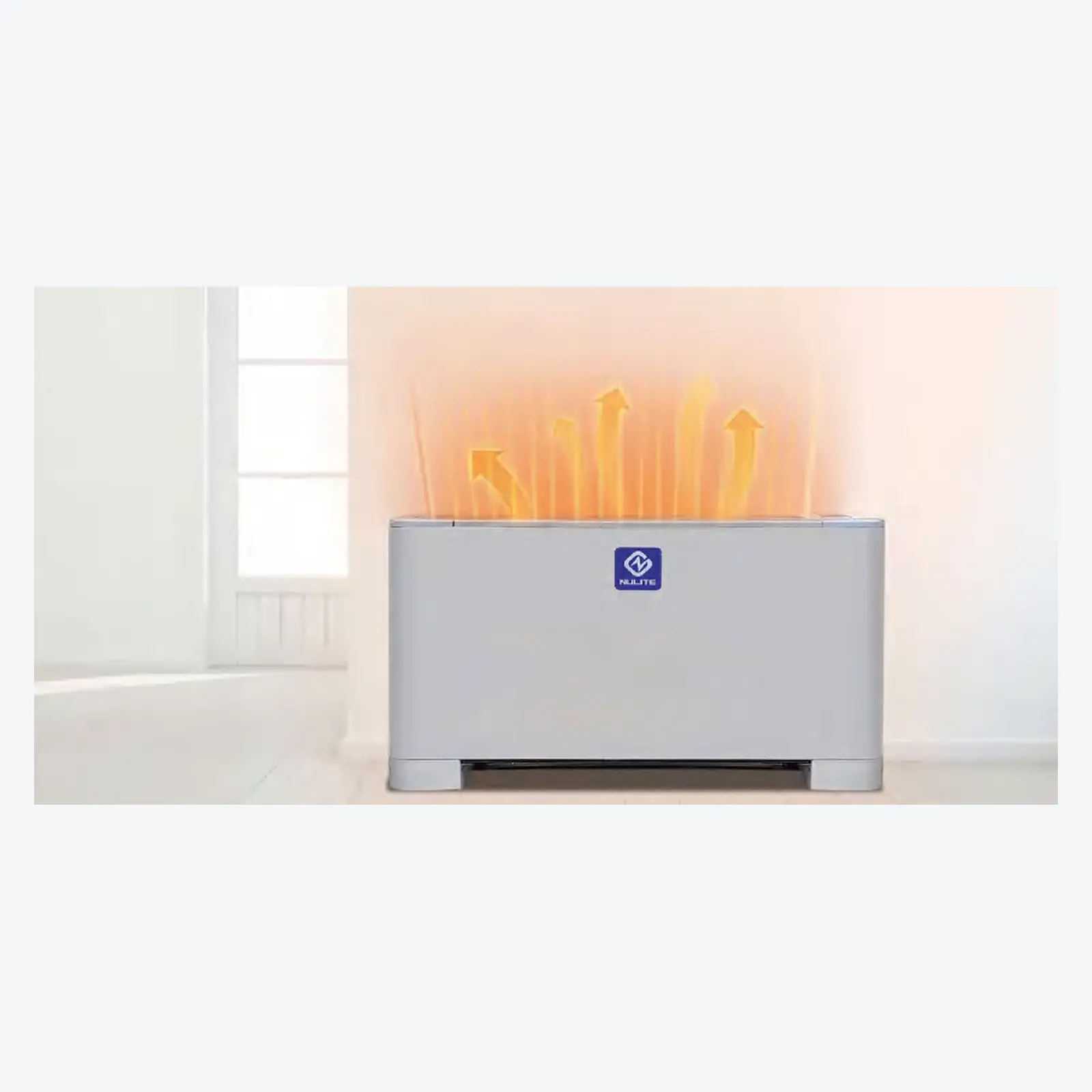

NULITE FP-LM is a range of floor-standing fan coil units in decorative cabinets for room heating and cooling from a central hydronic circuit. The unit is positioned against a wall and supplies conditioned air directly into the room, making it suitable where suspended-ceiling space is unavailable.
Capacity range
Nine FP-34LM to FP-238LM models provide 1.8–12.6 kW cooling and 2.7–18.9 kW heating at high fan speed. Three-speed airflow extends from 180 to 2380 m³/h.
Standard and high-static versions are listed with 12, 30, or 50 Pa external static pressure. Input power is 41–247 W for standard units and 45–273 W for high-static versions, allowing for the resistance of grilles and short air-distribution components.
Coil and hydraulics
The brochure describes a three-row coil with copper tubes and aluminium fins at 2.2 mm spacing. Working pressure is 1.2 MPa, while water and condensate connections are DN20. Design water flow is 350–1460 kg/h and hydraulic resistance is 15–45 kPa.
Applications
- homes, apartments, and hotel rooms;
- offices, private rooms, shops, and small restaurants;
- schools, medical rooms, and administrative buildings;
- retrofit projects replacing radiator-positioned equipment;
- systems served by chillers, heat pumps, or central boiler plants.
Installation and operation
Installation requires a level base, unobstructed air intake and discharge, insulated piping, balancing valves, and condensate drainage. Service space is needed for filter cleaning and access to the fan, drain pan, and coil.
Published capacities depend on water temperatures, water flow, room conditions, and fan speed. Final model selection requires an engineering calculation.
